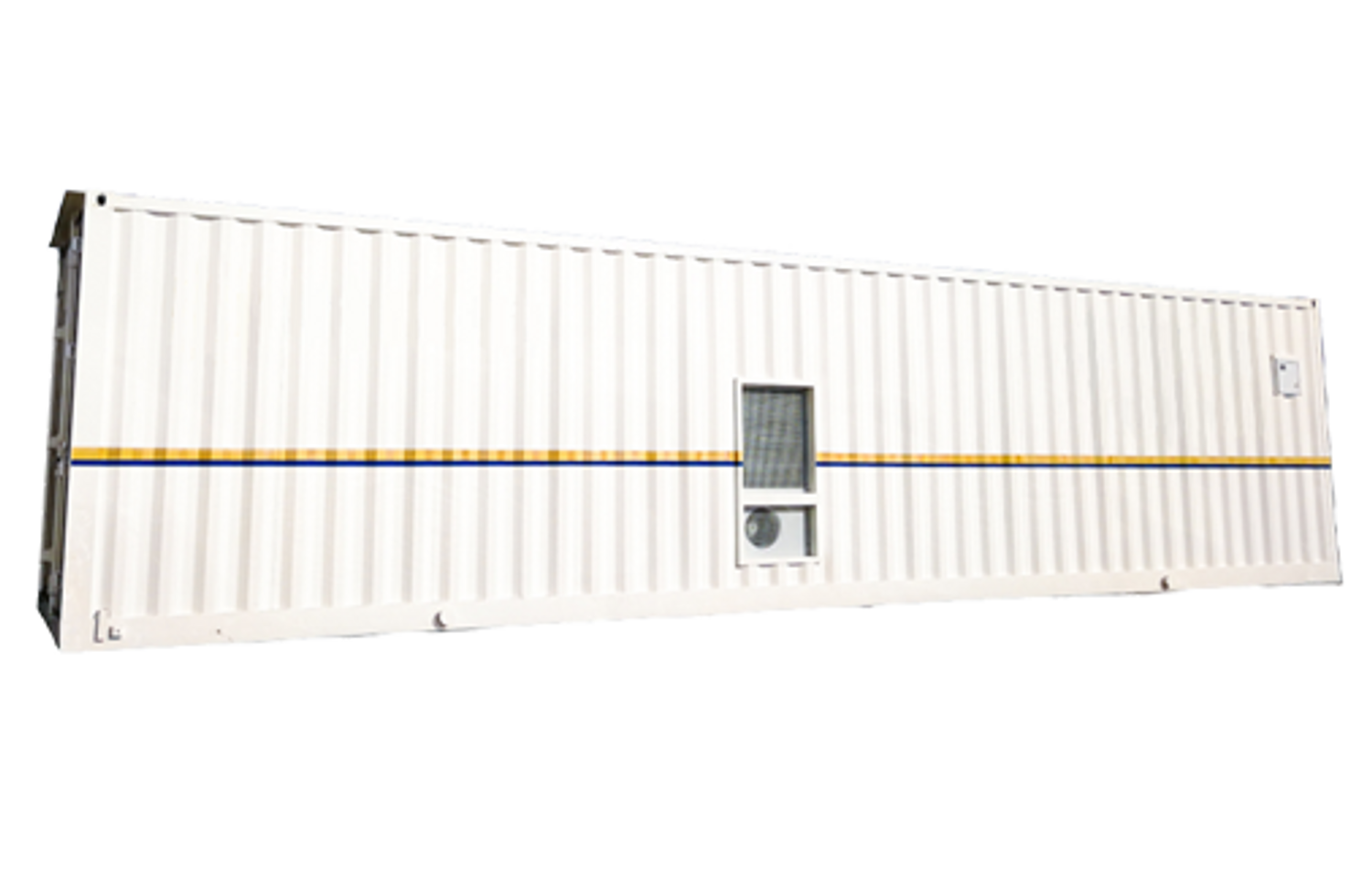

PRODUC T DESCRIPTION of Energy-Type Containerized
This series of ACE energy storage systems are mainly composed of the battery, battery management system (BMS), monitoring system, fire-proof system, temperature control system, and container auxiliary equipment. The product is applicable to power plants and power grids (grid side and user side) and can be customized according to actual requirements. This series can be used for 0.5C or lower charging/discharging current application scenarios.
PRODUCT FEATURES of Energy-Type Containerized
-
Highly integrated
-
Highly reliable: employing high-security LFP batteries with 4-level management design, DC-side 3-level fuse protection, composite fire-proof design, pre-warning mechanism, and precise temperature control
-
Improved efficiency: DC cycle efficiency ≥ 94%
-
Modular and standard design
-
Certification: IEC and UN (cell/ battery pack)
APPLICATION SCENARIOS of Energy-Type Containerized
-
User-side peak shifting, demand control and demand response
-
Power plant side peak shifting, new energy electricity generation and consumption, and electricity quality improvement
-
Grid-side peak shifting, line loss reduction, and electricity quality improvement
-
PV ESS integration and micro grid construction
-
Emergency power backup
Specifications of Energy-Type Containerized
| ITEM | Cell | Cell Pack | Cell Cluster |
| Rated Voltage [V] | 3.2 | 44.8 | 761.6 |
| Rated Capacity [Ah] | 280 | 280 | 280 |
| Rated Energy [KWh] | 0.896 | 12.544 | 213.248 |
| Charge cut-off voltage [V] | 3.65 | 50.4 | 856.8 |
| Discharge cut-off voltage [V] | 2.5 | 39.2 | 666.4 |
| Max. Continuous Charge Current [C] | 1 | 0.5 | 0.5 |
| Max. Continuous Discharge Current [C] | 1 | 0.5 | 0.5 |
| Operating Temperature [℃] | Charge：0~45 | ||
| Discharge：-20~60 | |||
| Dimensions(L*W*H) [mm] | 173*71*200 | 504*230*686 | 1040*717*2290 |
| Weight [kg] | 5.44 | 95±2 | 1800 |
| Features | Parameter | |
| Environment Condition | Installation environment | Outdoor |
| Ambient temperature | -20～45℃ | |
| Humidity range | 0～90% | |
| Altitude [m] | ≤2000 | |
| AC Grid Connection Parameters | Connection mode | 3 Phase/PE |
| Rated voltage [V] | AC380/400 | |
| Rated frequency [Hz] | 50 | |
| Power factor | ±1 | |
| Output harmonics [%] | ≤3 | |
| DC Side Parameters | Output harmonics [%] | 729.6 |
| Battery voltage range [V] | DC666.4～856.8 | |
| Power / Capacity Parameters | Split type [kW/kWh] | 250- 1260/500-2500 |
| All-in-one [kW/kWh] | 250-630/500-2500 | |
| Other Parameters | Heat dissipation mode | Air conditioning cooling |
| Noise | ≤65dB | |
| Seismic grade | UBC Zone4 | |
| Wind resistance grade | Category 15 hurricane | |
| Standards and Certification | Battery | IEC62619，UN38.3，GB/36276 |
| Size | 40FT container（12192* 2438 * 2896mm） | |
Topology of Energy-Type Containerized
